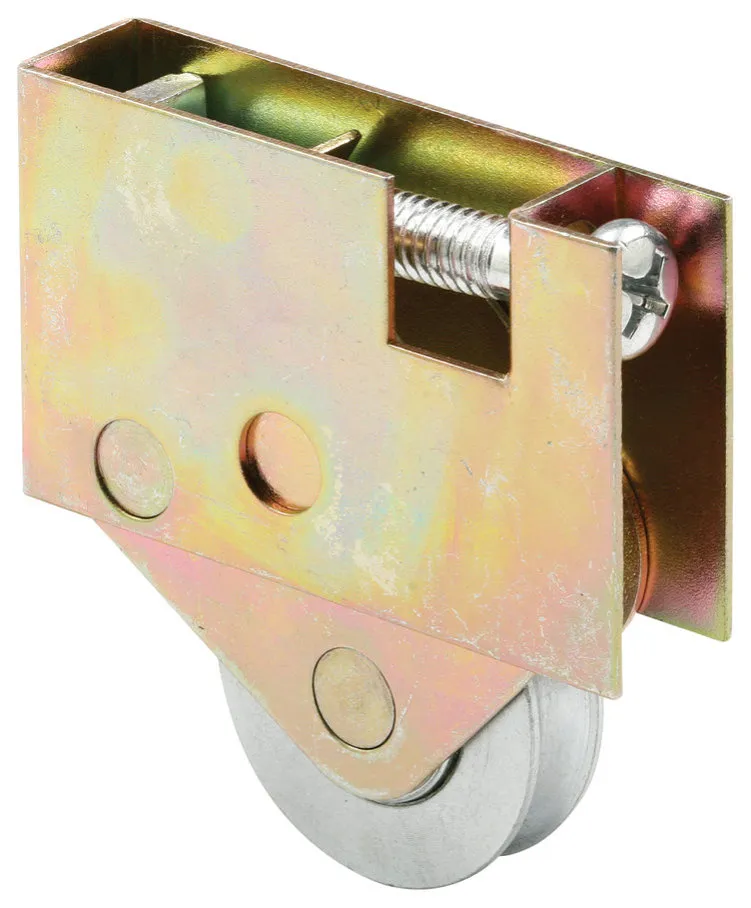

1-1/2″ Ball Bearing Steel Sliding Door Roller Assembly, Pella

This is a Drive-In style patio door roller assembly used on Pella wood patio doors. It is 11/16 in. wide x 1-11/16 in. deep and 2-3/4 in. long. It is driven into a rectangular mortise in the bottom of the door. When installing, the adjustment screw head should face toward the edge or stile of the door.

• Used on Pella wood patio doors
• Fits into mortise on the bottom of the wood patio door
• 1-1/2 in. concave roller
• Stamped steel housing and steel ball bearing roller
• Easy to install
• Adjustment screw should face edge of door
• A Phillips head screwdriver is required for installation
• For further dimensional information, please see the line drawing
