1-1/4″ Nylon Ball Bearing Sliding Door Roller Assembly, Lupton

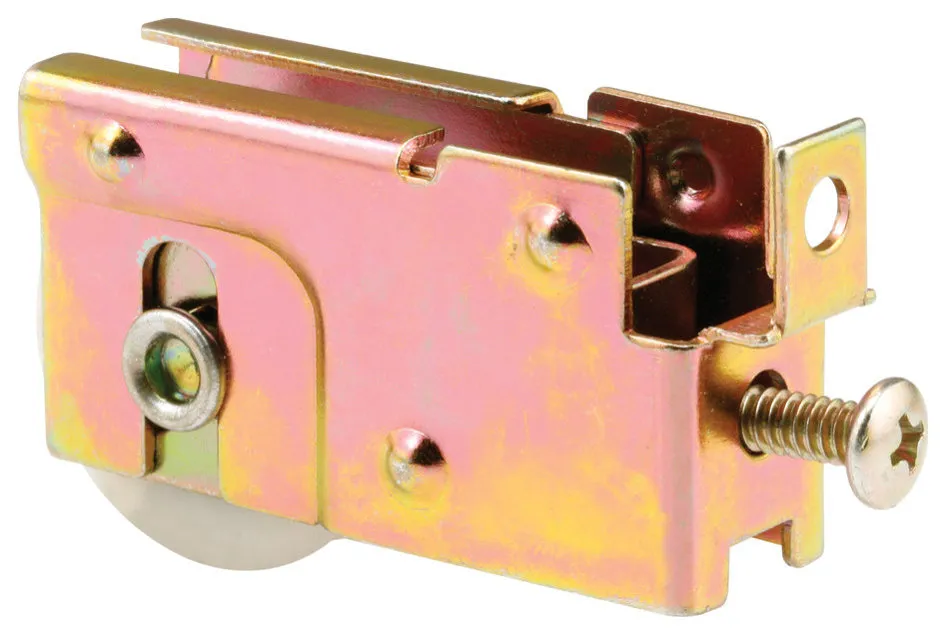

This is a F-tab patio door roller assembly with a 1-1/4 in. concave nylon ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 11/16 in. wide and 1-3/16 in. tall with a 7/8 in. dimple width. Used by Lupton and a variety of sliding patio door manufacturers.

• Used by Lupton and a variety of sliding patio door manufacturers
• When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
• 1-1/4 in. concave roller
• Steel housing and ball bearing roller
• F-tab rear adjusting screw
• Used on metal framed patio doors
• A Phillips head screwdriver is required for installation
• For further dimensional information, please see the line drawing
