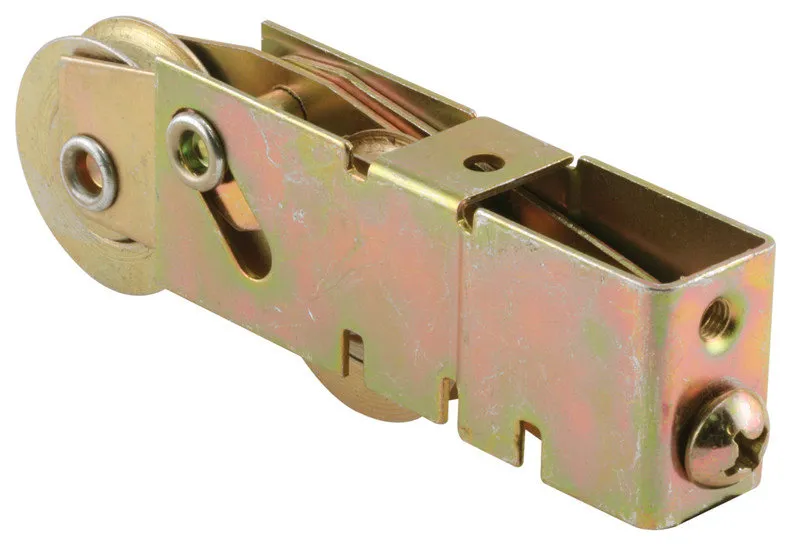

1-1/4″ Steel Ball Bearing Tandem Roller Assembly, Plain Back

This is a plain back tandem roller assembly with two 1-1/4 in. concave or grooved steel ball bearing rollers. The stamped steel housing is adjustable and is used by a variety of manufacturers of vinyl, aluminum or wood doors. The housing is a plain back style that is 3/4 in. wide and 1-1/8 in. tall with a 1/4-20 threaded mounting hole on the back end and an optional use #10-32 threaded hole on the top.

• Tandem Rollers
• 1-1/4 in. Concave (grooved) Steel Ball Bearing Roller
• Plain Back Housing
• Stamped Steel Housing
• 1/4-20 threaded mounting hole on the back end and an optional use #10-32 threaded hole on the top of the housing.
• The housing is a plain back style that is 3/4 in. wide, 1-1/8 in. tall and 3-1/8 in. long
• Used by a variety of manufacturers of vinyl patio doors
• For further dimensional information, please see the line drawing
