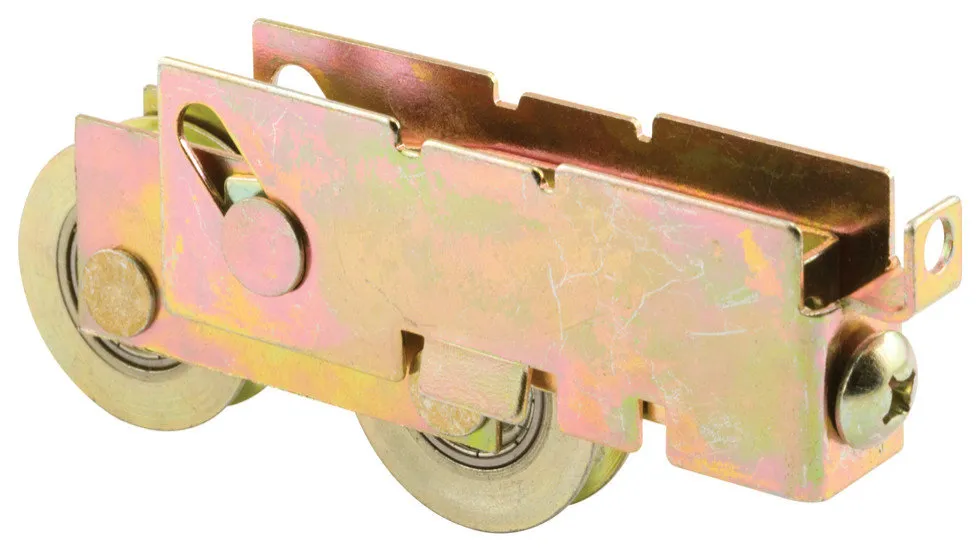

1-1/4″, Steel, Sliding Door Tandem Roller Assembly with F-Tab

This is an F-tab tandem roller assembly with two 1-1/8 in. concave steel ball bearing rollers installed. When the corner screw passes through the F-tab, the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The adjustable stamped steel housing is 11/16 in. wide with a 13/16 in. flare, 1-1/8 in. tall and 3-1/8 in. long. Used by a variety of sliding patio door manufacturers.

• Used by a variety of sliding patio door manufacturers
• When the corner screw passes through the F tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
• 1-1/4 in. diameter tandem concave rollers
• Stamped steel with steel ball bearing
• Rear adjustment screw
• Allows the door to roll smoothly
• A Phillips head screwdriver is required for installation
• For further dimensional information, please see the line drawing
