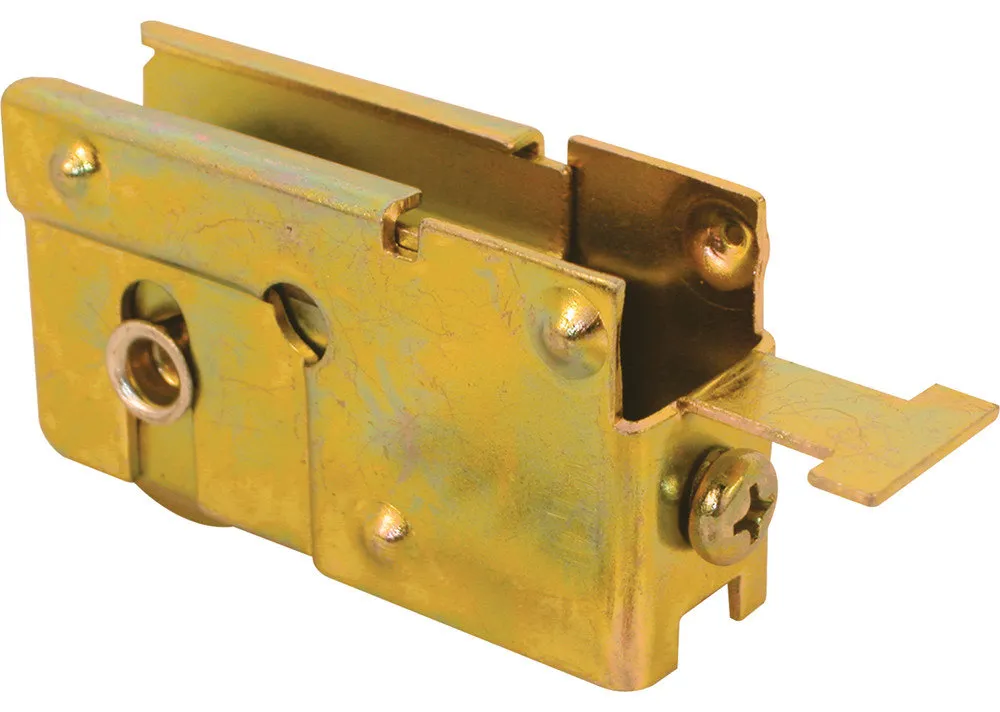

1-1/8″ Steel Ball Bearing Sliding Glass Door Roller Assembly

This is a K-tab patio door roller assembly with a 1-1/8 in. concave steel ball bearing roller. The T-shaped tab (K-tab) is simply slid up into a T-shaped receptacle in the bottom of the patio door. No screws are required for installation. The housing is 3/4 in. wide and 1-1/4 in. tall with a 7/8 in. dimple width. The dimples secure it within the door’s bottom frame. Used by a variety of door manufacturers.

• Used by a variety of door manufacturers
• The K-tab has a T-shape that slides into an opposite T-shape in the patio door frame
• 1-1/8 in. diameter concave ball bearing roller
• Stamped steel housing and roller
• Used on metal framed sliding patio doors
• Easy to install
• A Phillips head screwdriver is required for Installation
• For further dimensional information, please see the line drawing
