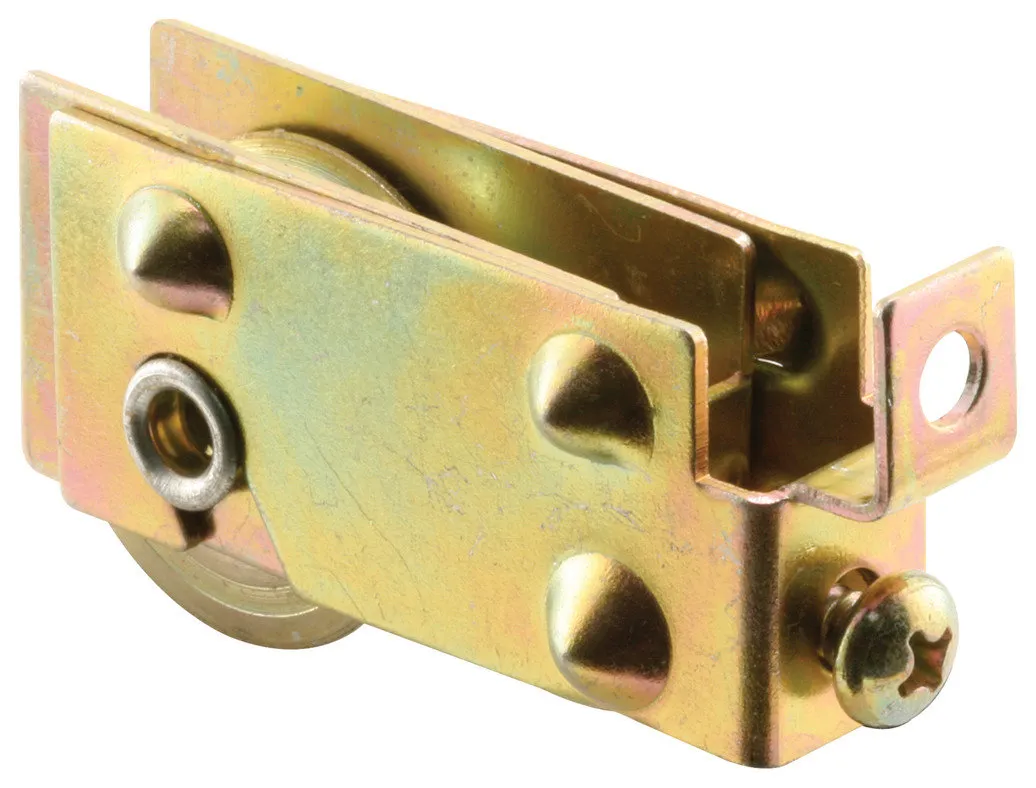

1-1/8″, Steel, Sliding Door Roller Assembly with F-Tab

This is an F-tab patio door roller assembly with a 1-1/8 in. concave steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 9/16 in. wide with 7/8 in. dimples, 1 in. tall and a rear adjusting screw. Used by a variety of patio door manufacturers.

• Used by a variety of metal framed sliding patio doors
• As the corner screw passes through the F-tab and is then captured by the side stile and bottom rail as the screw draws the two sides together
• 1-1/8 in. concave ball bearing roller
• Stamped steel construction with steel ball bearing roller
• F-tab housing with rear adjustment
• 7/8 in. dimples
• A Phillips head screwdriver is required for installation
• For further dimensional information, please see the line drawing
