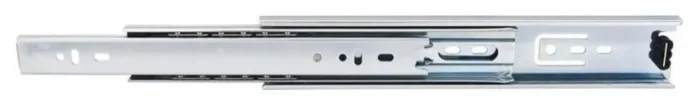

Hardware Resources 303FU22 303FU Series 22 Inch Full Extension – Zinc

Features: Designed to support up to 100 pounds of weight Mounts to the side of the drawer Provides easy access to the drawer with full extension slides Lever disconnect allows easy removal of entire drawer system Slides can be installed in either panel (frameless) or face frame cabinets Includes a limited lifetime manufacturer warranty Product Technologies: Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force. Specifications: BHMA Certification: Grade 1 Recommended Drawer Length: 22-1/2″ Slide Length: 22″ Extension Type: Full Extension Slide Type: Ball Bearing Weight Capacity: 100 lbs Material: Steel Cabinet Type: Face Frame, Panel Quantity: 2Product Variations: 303FU10: 10 Inch Drawer Slide 303FU12: 12 Inch Drawer Slide 303FU14: 14 Inch Drawer Slide 303FU16: 16 Inch Drawer Slide 301FU18: 18 Inch Drawer Slide 303FU20: 20 Inch Drawer Slide 303FU22 (This Model): 22 Inch Drawer Slide 303FU24: 24 Inch Drawer Slide 303FU26: 26 Inch Drawer Slide 303FU28: 28 Inch Drawer Slide
